Coronado Series

Multi-slide door & window

Las Puertas Multi-Deslizantes Coronado Series de NuVista con aluminio roto térmicamente, es nuestra puerta más popular por su versatilidad, configuraciones ilimitadas y anchos que nos ayudan a alcanzar líneas estrechas de 2-5 / 8″ gracias a paredes de aluminio de alta resistencia podemos construir enormes tamaños de panel de vidrio con la opción de vidrio triple (1-1 / 2 “de espesor) o de doble vidrio (1-1 / 4” de espesor) que puede aceptar hasta 60 pies cuadrados de ventana todo complementado por nuestras pistas de aluminio individuales, cabecera y jambas.

Hacemos todo el viaje suave en Husky Heavy Duty 3 “Roller con rodamientos de precisión sellados y una capacidad de carga de 1000 libras por panel que ofrecen una vida de deslizamiento suave y silencioso.

A nuestros clientes les encanta que se deslice tan fácilmente que incluso un niño puede mover una puerta de media tonelada, ¡con una sola mano! ¡Tú imaginación es el único límite!

Brochure

Download PDF

Energy Test Results

Download PDF

Weather Test Results

Download PDF

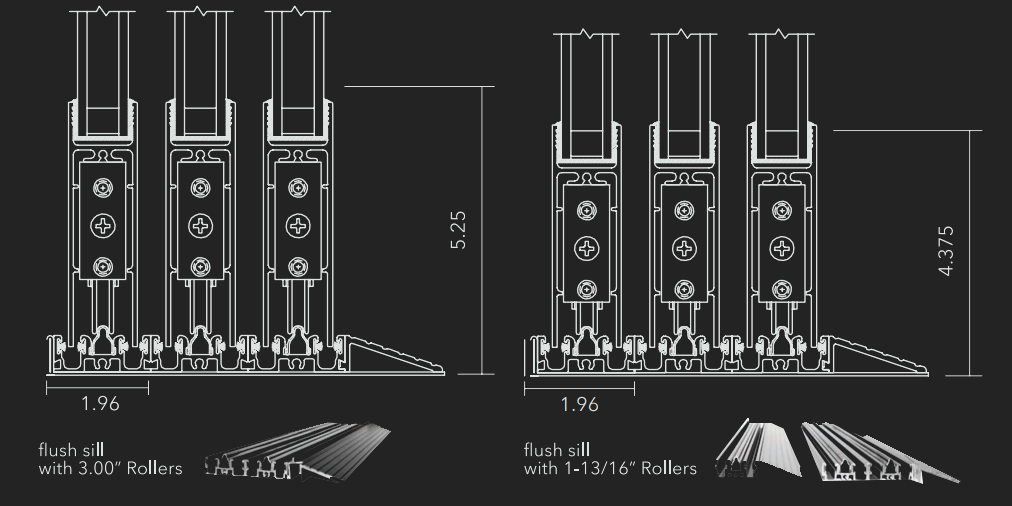

Floor Track Options

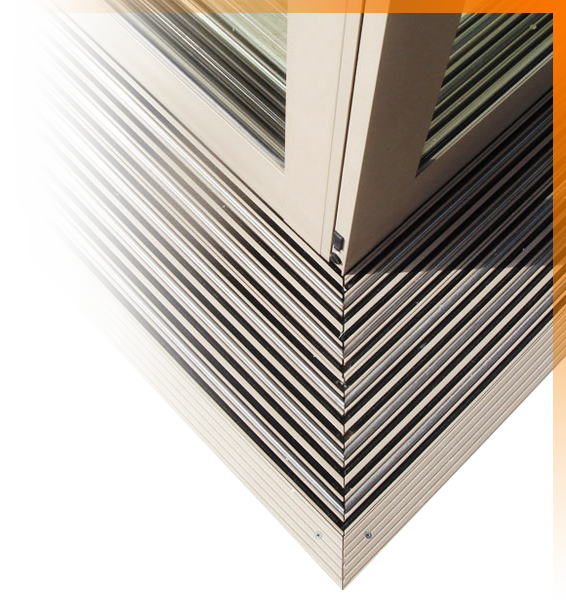

Flush Sill

The Aluminum Flush Sill 0.75″ is the ideal option for a smooth transition between interior and exterior flooring , and if you’re concerned with weather performance, our Flush Sill was designed to comply with high wind and water pressure.

If your project needs more protection we have the solution with our Stainless Steel Sill Pan.

Handle Options

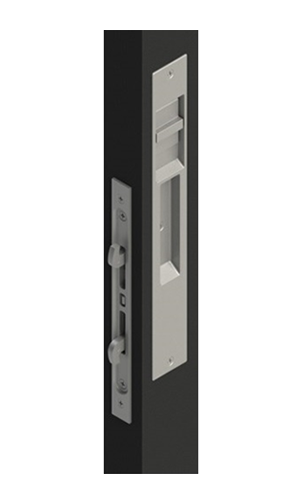

Flush Handle

Flush Handle

The flush handle is the standard hardware choice on all Glendale 4070-EX Multi-slide Door configurations. Its strong, modern design and flush mount allow panels to bypass each other or slide into a wall pocket and disappear when the door is open. The Flush Handle is available in a Brushed Nickel or Black Powder Coating finish, more options available upon request.

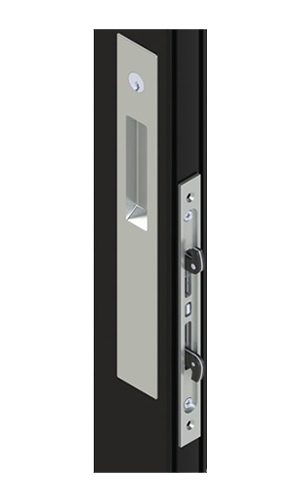

Multipoint Lock

Multipoint Lock

The Stainless Steel construction of the Multipoint stainless steel hook lock is recessed into the jamb and latches at various contact points. It complies with the highest standard of quality in strength, security and protection.

Roller Options

HuskeyRoller
Roller

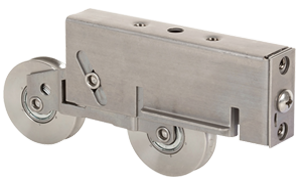

1-13/16” Roller

The 1-13/16″ Roller is a High-Performance model used for our smaller Multi-Slider doors, this tandem roller uses machined Stainless Steel wheels and sealed precision bearing that provides a quiet smooth slide for the life of your door.

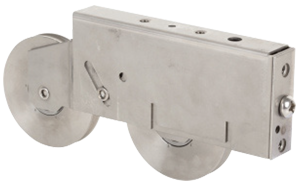

3” Huskey Rollers

The 3″ Roller is the top of the line for our oversized Multi-Slider door; this tandem roller is machined from solid Stainless Steel and uses sealed precision bearings and a stainless steel axle. Is recommended for door heights over 10′ tall (but is available in all sized of doors), the rollers are capable of handling 1000 pounds per panel, our clients love the easy sliding, it’s so easy that even a child can move hundreds of pounds with only one hand, at the same time guaranteeing a lifetime of smooth and quiet operation.

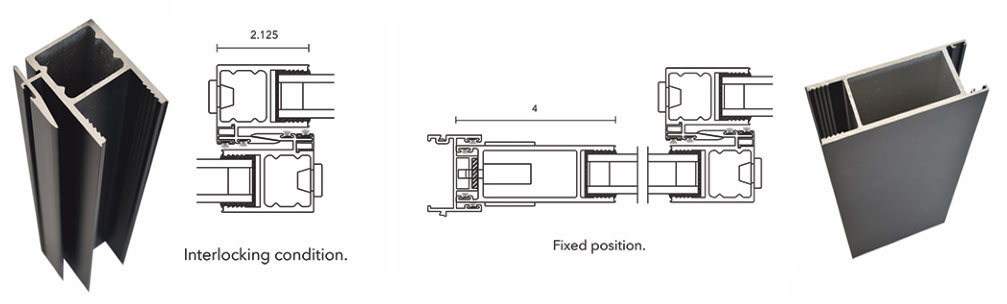

Lock style and interlock

Our interlock system has a 2-1/8″ profile, so it very narrow and sleek but still strong enough to be rated and certified on panels up to 12 Feet tall! Our lock style is a 4″ profile, giving maximum security when closed with the Stainless Steel Multi-Point lock.

Options Aluminium Finishes

Aluminium Finishes

Aluminum finishes for the Series Malibu 250 are available in-stock. Samples shown are representative only. For exact paint swatch samples, contact us.

Designer Finishes

Our designer colors are based upon popular paint choices in the homebuilding industry and include a high-quality paint finish that conforms to a minimum rating of AAMA-2605, currently the highest rating for organic finishes.

Satin Anodized

Satin Anodized

Dark Bronze

Dark Bronze

Black Matte

Black Matte

Sierra Tan

Sierra Tan

Beige

Beige

Quartz Grey

Quartz Grey

Slate Grey

Slate Grey

Sepia Brown

Sepia Brown

In-Stock Finishes

Dark bronze and Clear anodized aluminum come standard with a Class 1 coating thickness for increased smoothness and durability.

Custom Finishes

Have a specific color in mind? We can customize the color of your Series Malibu 250 to match virtually any finish. Nuvista offer thousands of paint colors but we invite you to review our “Favorite 6 Colors” or bring us your paint chip or UC number and we will do our best to match the color exactly.
